Sander 1 set of sanding belt +1 set of universal roller |
Basic parameters of equipment:
1. Scope of application: Suitable for flat panel parts, carbon steel plate, stainless steel plate, aluminum plate, copper plate, titanium alloy, all kinds of non-ferrous metals, rubber and plastic materials, etc.
2. Equipment functions: pre-grinding, drawing, polishing, scratching, deburring, chamfering, etc., for laser cutting, shearing plate cutting, stamping cutting, water knife cutting, plasma cutting and other workpiece surface processing
3. Equipment combination: Single or multiple combination structures of wide sand belt + universal rolling brush
4. Equipment processing width: 800mm, 1000mm, 1350mm, 1600mm
5. Equipment processing thickness: 0.5-100mm
6. Feeding speed: 0.5-6m/min (variable frequency adjustable)
7. Optional feeding methods:
(1) Strong permanent magnet adsorption feeding (suitable for carbon steel workpieces. Workpiece size ≥10mm×10mm)
(2) vacuum negative pressure adsorption feeding (suitable for stainless steel plate, copper plate, aluminum plate, etc., is not magnetically adsorbed. Workpiece size ≥50mm×50mm)
8. Four-column synchronous lifting, rolling brush station independent lifting, lifting servo control, accuracy 0.01mm.
9. CNC PLC touch screen to adjust processing parameters.
10. Supporting wet vacuum cleaner or industrial pulse vacuum cleaner to deal with grinding dust, to achieve environmentally friendly production.

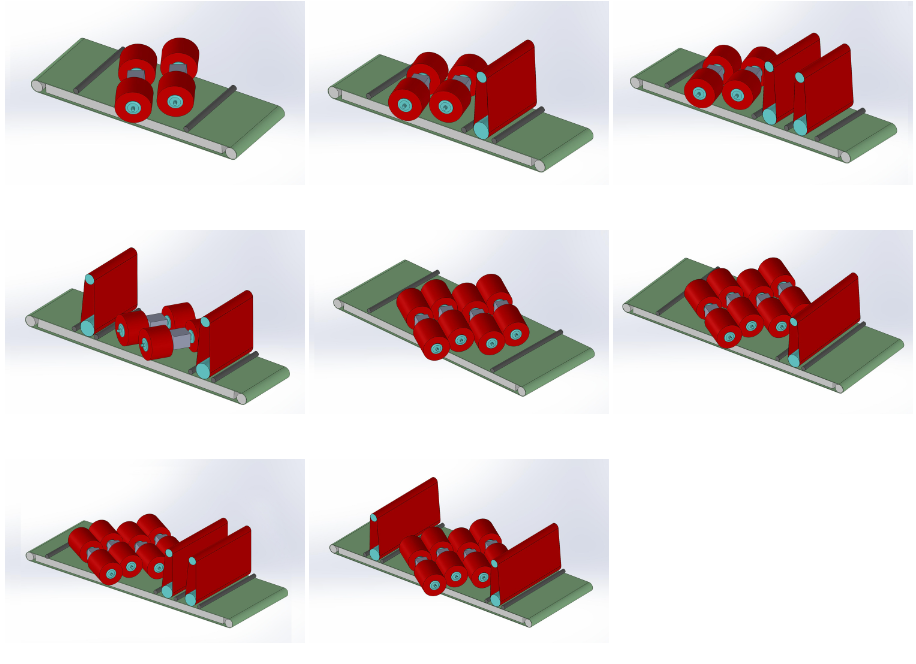

Equipment structure diagram:
